Product Summary

The TAA765A is a Single Operational Amplifier. The applications of the TAA765A are Amplifier, Comparator, Level converter, Driver.

Parametrics

TAA765A absolute maximum ratings: (1)Supply voltage VS: ±18V; (2)Output current IQ: 70mA; (3)Differential input voltage VID :±VS V; (4)Junction temperature Tj: 150℃; (5)Storage temperature range Tstg: -55℃ to 125℃; (6)Thermal resistance system-air: 115K/W.

Features

TAA765A features: (1) Wide common-mode range; (2) Large supply voltage range; (3) Large control range; (4) Wide temperature range (TAA 762); (5) High output frequency compensation; (6)Open collector output.

Diagrams

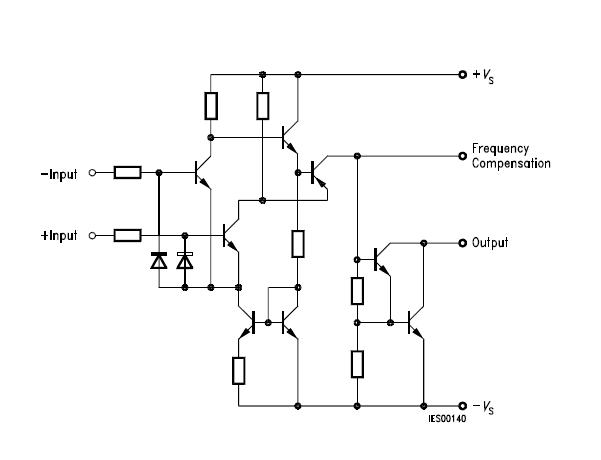

TAA765A block diagram
