08051JOR1BBT(0.1PF)

Product Summary

The 08051JOR1BBT(0.1PF) is a Thin-Film Chip Capacitor. The use of very low-loss dielectric materials, silicon dioxide and silicon oxynitride, in conjunction with highly conductive electrode metals results in low ESR and high Q. These high-frequency characteristics change at a slower rate with increasing frequency than for ceramic microwave capacitors. Because of the thin-film technology, the above-mentioned frequency characteristics are obtained without significant compromise of properties required for surface mounting. The applications of the 08051JOR1BBT(0.1PF) include Cellular Communications, CT2/PCN (Cordless Telephone/Personal Comm. Networks), Satellite TV, Cable TV, GPS (Global Positioning Systems), Vehicle Location Systems, Vehicle Alarm Systems, Paging, Military Communications.

Parametrics

08051JOR1BBT(0.1PF) absolute maximum ratings: (1)Operating and Storage Temperature Range: -55℃ to +125℃; (2)Temperature Coefficients: 0±30ppm/℃ dielectric code “J”/0±60ppm/℃ dielectric code “K”; (3)Capacitance Measurement 1 MHz, 1Vrms; (4)Insulation Resistance (IR): ≥1011 Ohms (≥1010 Ohms for 0201 and 0402 size); (5)Proof Voltage: 2.5 UR for 5secs; (6) Aging Characteristic: Zero; (7) Dielectric Absorption: 0.01%.

Features

08051JOR1BBT(0.1PF) features: (1)Minimal batch to batch variability of parameters at high frequency; (2)The Accu-P has the same unique features as the Accu-F capacitor such as low ESR, high Q, availability of very low capacitance values and very tight capacitance tolerances; (3)The RF power handling capability of the Accu-P allows for its usage in both small signal and RF power applications; (4)Inspection, test and quality control procedures in accordance with ISO 9001, CECC, IECQ and USA MIL Standards guarantee product of the highest quality; (5)Hand soldering Accu-P Due to their construction utilizing relatively high thermal conductivity materials, Accu-P have become the preferred device in R & D labs and production environments where hand soldering is used Accu-P are available in all sizes and are electrically identical to their Accu-F counterparts.

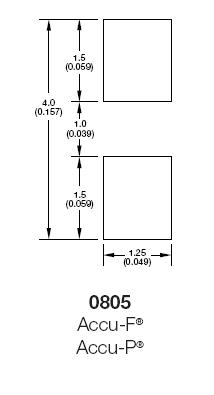

Diagrams
