Product Summary
The CXD1162P is a digital filter LSI with quadrupled sampling rate, developed for compact disc player. The functions of the CXD1162P include built-in filters for 2 channels, filtering with a quadrupled sampling rate, 2-stage FIR filters interconnected in cascade, soft-muting function and so on..
Parametrics
CXD1162P absolute maximum ratings: (1)Supply Voltage: -0.5V to +6.5V; (2)Input Voltage: -0.5V to VDD +0.5V; (3)Allowable power dissipation: 550mW @ Ta=75℃; (4)Storage temperature: -55℃ to +150℃.
Features
CXD1162P features: (1)83 taps and 21 taps filters linked through cascade connections provide a quadrupled sampling digital filter; (2) Built-in filters for 2 channels correspond to L and R; (3) A variety of functions, including soft muting; (4)83rd and 21st order filters have 2 modes of filter coefficients each, that enable the selection of the filter characteristics most suitable for usage.

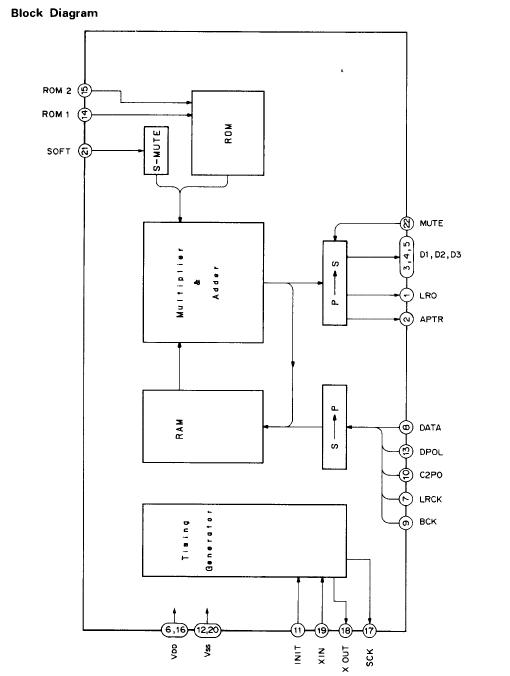

Diagrams

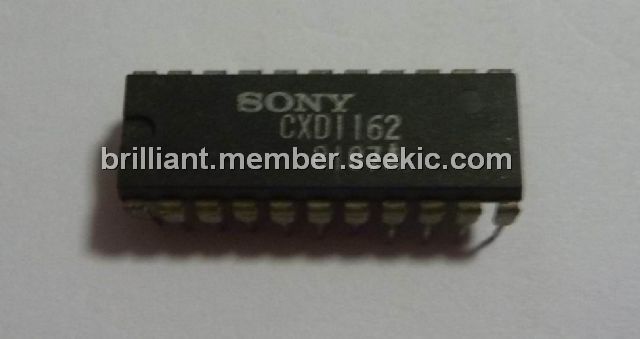

| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 CXD1162P |
Other |
|
Data Sheet |
Negotiable |
|
||||
