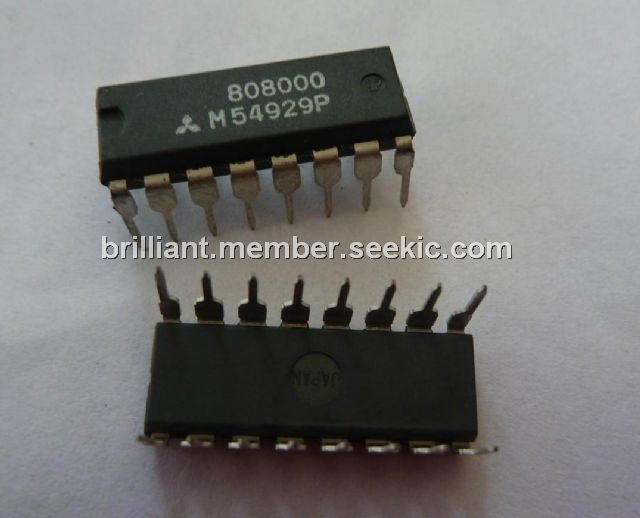

The M54929P is an IIL semiconductor integrated circuit consisting of a PLL frequency synthesizer, suitable for use in amateur radio equipment. The application of the M54929P includes Amateur radio equipment.
Parametrics
M54929P absolute maximum ratings: (1)Supply voltage: -0.5V to +6.0V; (2)Input Voltage: -0.5V to 2.0V; (3)Output Voltage: VCC V; (4)Power Dissipation: 600mW; (5)Operating temperature: -20℃ to +75℃; (6)Storage temperature: -40℃ to +125℃.
Features
M54929P features: (1)Capable of synthesizing frequencies up to 300MHz when used with the M54466L 1/10, 1/11 2-modulus prescaler; (2)Programmable divider can operate at frequencies up to 30MHz; (3)Division ratios from 200 to 3999 can be set using a swallow counter (set from 0 to 9 by 4 bits of BCD code) and program divider (set from 20 to 3999 by 14 bits of BCD code); (4)Four reference frequency division ratios (1/20, 1/100, 1/1000, and 1/1024); (5)PLL lock/unlock status display outputs; (6)Two-stage data latch.
