Product Summary

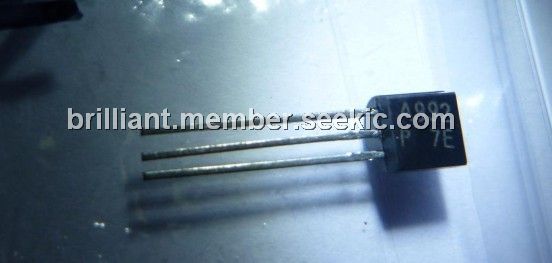

The 2SA992 is a PNP silicon transistor. It is best for use as the middle range amplifier in Hi-Fi stereo control amplifiers, power amplifiers, and etc.
Parametrics
2SA992 absolute maximum ratings: (1)Storage Temperature: -55℃ to +125℃; (2)Junction Temperature: +125℃ Maximum; (3)Total Power Dissipation: 500mW; (4) VCBO Collector to Base Voltage: -120V; (5) VCEO Collector to Emitter Voltage: -120V; (6) VEBO Emitter to Base Voltage: -5.0V; (7) Collector Current: -50mA; (8) Base Current: -10mA
Features
2SA992 features: (1) High voltage VCEO: -120V; (2) Low Output Capacitance: 2.0pF TYP. (VCB=-30V); (3) High hFE: 500 TYP. (VCE = -0.6V, IC = -1.0mA); (4) Super Low Noise: 25mV TYP; (5) Complementary to 2SC1845.
Diagrams
 |
