Product Summary

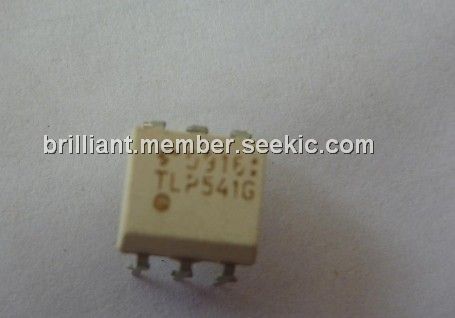

The TLP541G is a Photocoupler. It consists of a photo-Thyristor optically coupled to a gallium arsenide infrared emitting diode in a six lead plastic DIP package.

Parametrics

TLP541G absolute maximum ratings: (1)Forward current:70mA ; (2)Forward current derating (Ta≥25℃):-0.7mA/℃; (3)Peak forward current (100μs pulse, 100pps):1A ; (4)Reverse voltage:5V ; (5)Junction temperature:125℃; (6)Peak forward voltage (RGK = 27kΩ):400V ; (7)Peak reverse voltage (RGK = 27kΩ):400V ; (8)On-state current:150mA ; (9)On-state current derating (Ta≥25℃):-2.0mA/℃; (10)Peak one cycle surge current:2A ; (11)Peak reverse gate voltage:-5V ; (12)Junction temperature:100℃; (13)Storage temperature range:-55℃ to 125℃ ; (14)Operating temperature range:-30℃ to 100℃; (15)Lead soldering temperature (10 s):260℃; (16)Isolation voltage (AC, 1 min., R.H. ≤ 60%):2500Vrms.

Features

TLP541G features: (1) Peak off-state voltage: 400 V (min.); (2) Trigger LED current: 7mA (max.); (3) On-state current: 150mA (max.); (4) Isolation voltage: 2500Vrms (min.); (5) UL recognized: UL1577, file no. E67349.

Diagrams

TLP541G Pin Configuration
