Product Summary

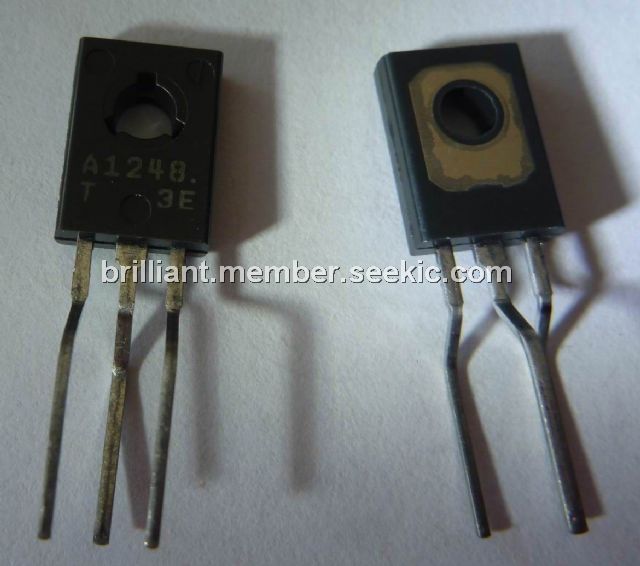

The 2SA1248 is a PNP/NPN Epitaxial Planar Silicon Transistor. The applications of the 2SA1248 include Color TV sound output, converters, inverters.
Parametrics
2SA1248 absolute maximum ratings: (1)Collector-to-Base Voltage VCBO: -180V; (2)Collector-to-Emitter Voltage VCEO: -160V; (3)Emitter-to-Base Voltage VEBO: -6V; (4)Collector Current IC: -0.7A; (5)Collector Current (Pulse) ICP: -1.5A; (6)Collector Dissipation PC: 1W; (7)Collector Dissipation @ TC=25℃: 10W; (8)Junction Temperature Tj: 150℃; (9)Storage Temperature Tstg:-55℃ to +150℃.
Features
2SA1248 features: (1) High breakdown voltage; (2) Large current capacity; (3) Using MBIT process.

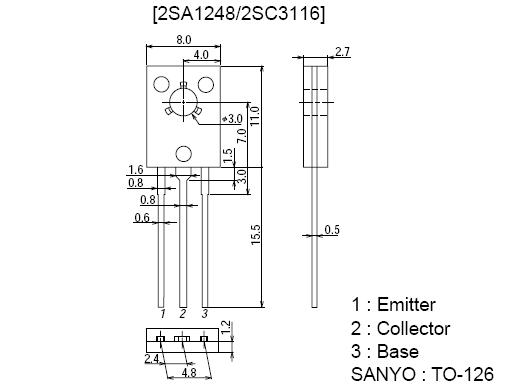

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 2SA1248 |
Other |
|
Data Sheet |
Negotiable |
|
||||
