Product Summary

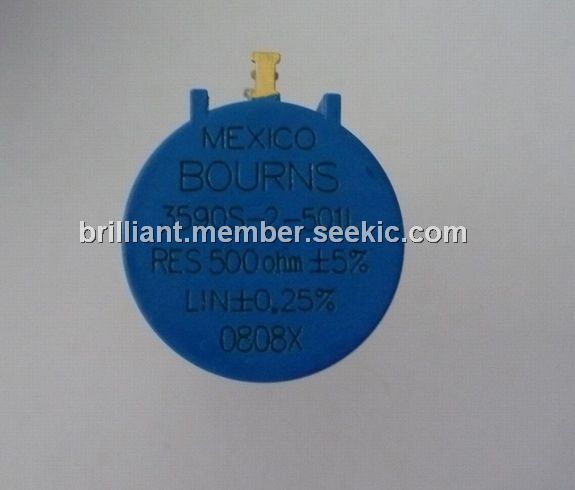

The 3590S-2-501 is a precision potentiometer designed for use in HMI applications.
Parametrics
3590S-2-501 electrical characteristics: (1)Standard Resistance Range: 200 to 100 K ohms; (2)Total Resistance Tolerance: ±5%; (3)Independent Linearity: ±0.25%; (4)Effective Electrical Angle: 3600°+10°, -0°; (5)Absolute Minimum Resistance: 1 ohm or 0.1 % maximum (whichever is greater); (6)Noise: 100 ohms ENR maximum; (7)Dielectric Withstanding Voltage (MIL-STD-202, Method 301); (8)Sea Level: 1,500 VAC minimum; (9)Power Rating (Voltage Limited By Power Dissipation or 450 VAC, Whichever is Less): 2 watts at +40 ℃; 0 watt at +125 ℃ ; (10)Insulation Resistance (500 VDC): 1,000megohms minimum; (11) Resolution: see recommended part numbers.
Features
3590S-2-501 features: (1) Bushing mount; (2) Optional AR pin feature; (3) Plastic or metal shaft and bushings; (4) Wire wound; (5) Solder lugs or PC pins; (6)Sealable (Full body seal).

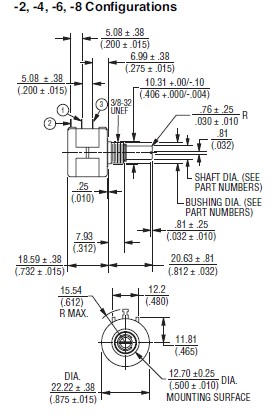

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 3590S-2-501 |
Bourns |
Precision Potentiometers 7/8"WW 500OHMS 0.25% 10TURNS |
Data Sheet |
|
|
||||||||||||
|
3590S-2-501L |
Bourns |
Precision Potentiometers 7/8"WW 500ohms 0.25% 10turn |
Data Sheet |
|
|
||||||||||||
