Product Summary

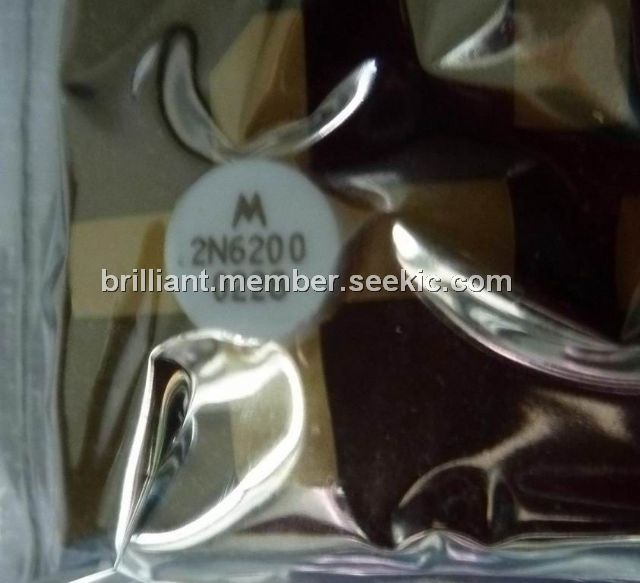

The 2N6200 is an amplifier. It is specifically designed for VHF broadband linear power amplifier applications in the 100-200 MHz range. The 2N6200 is capable of operation in Class A, AB or C amplifiers and provides the maximum power output/power gain combination.
Parametrics
2N6200 absolute maximum ratings: (1)Maximum Power Dissipation @25℃ Case Temperature: 85W; (2)BVces Collector to Emitter Voltage: 60V; (3)BVebo Emitter to Base Voltage: 40V; (4)IC Collector Current: 8.5A; (5)Storage Temperature: -65℃ to 150℃; (6)Operating Junction Temperature: +200℃.
Features
2N6200 features: (1)Power Output: 40Watts; (2)Power Input: 6.0Watts; (3)Power Gain: 8.2dB; (4)Collector Efficiency: 60%; (5)BVceo Breakdown Voltage (Collector to Emitter): 33V; (6)BVces Breakdown Voltage (Collector to Emitter): 60V; (7)BVebo Breakdown Voltage (Collector to Emitter): 4.0V; (8)Capacitance Collector to Base: 150pF; (9)DC-Current Gain: 10; (10)Thermal Resistance: 2.6℃/W.

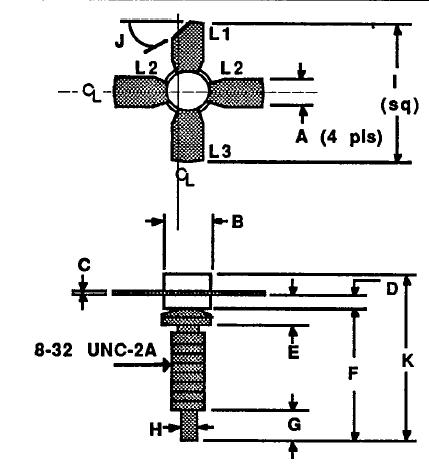

Diagrams
 |
