Product Summary
The 2SC3855 is a Silicon NPN Power Transistor. The applications of the 2SC3855 include Audio and general purpose.
Parametrics
2SC3855 absolute maximum ratings: (1)VCBO Collector-base voltage Open emitter: 200V; (2)VCEO Collector-emitter voltage Open base: 140V; (3)VEBO Emitter-base voltage Open collector: 6V; (4)IC Collector current: 10A; (5)IB Base current: 4A; (6)PC Collector power dissipation TC=25℃: 100W; (7)Tj Junction temperature: 150℃; (8)Tstg Storage temperature: -55℃ to 150℃.
Features

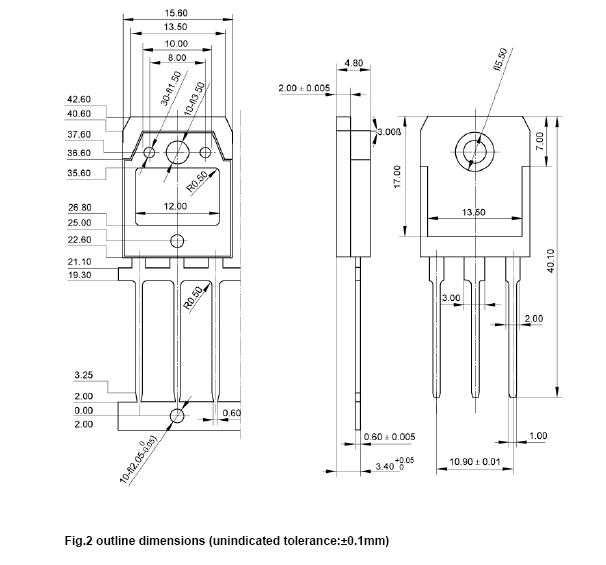

2SC3855 features: (1) With TO-3PN package; (2) Complement to type 2SA1491.
Diagrams
