Product Summary

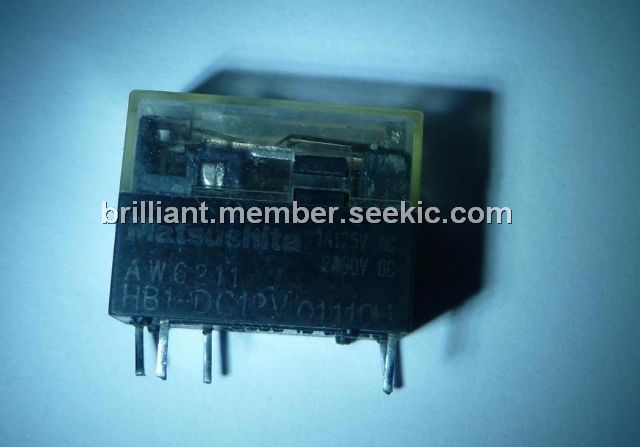

The HB1-DC12V is a cost saving subminature DIP relay.

Parametrics

HB1-DC12V absolute maximum ratings: (1) Arrangement: 1 Form C, 2 Form C; (2) Contact material: Gold-clad over silver-nickel; (3) Initial contact resistance, max. (By voltage drop 6V DC 1A): 100mΩ; (4) Max. Switching power: 125VA, 60W; (5) Max. Switching voltage: 125V AC, 30V DC; (6) Max. switching current: 1A AC, 2A DC; (7)Maximum operating cycles: 20cpm; (8)Ambient temperature: –40℃ to +50℃; (9)Humidity: 5 to 85%R.H.; (10) Unit weight: 8g.

Features

HB1-DC12V features: (1)Small size for increased packaging density; (2)Sensitive - Very low operating power; (3)Simple mechanism for stable quality - only 7 piece parts; (4)DIP matching 16 pin IC socket; (5)Contact capacity - 1A 125V AC, 2A 30V DC.

Diagrams

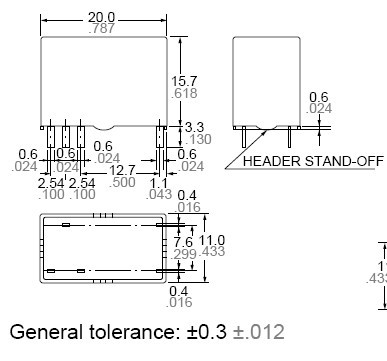

HB1-DC12V dimension
