Product Summary

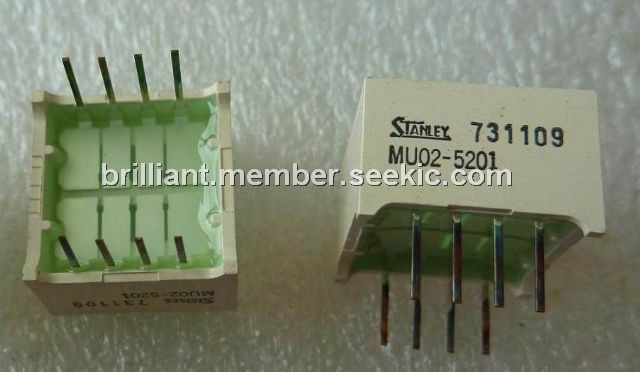

The MU02-5201 is a single color/light bar module. The applications of the MU02-5201 include electric household appliances, OA/FA, other general applications.

Parametrics

MU02-5201 absolute maximum ratings: (1)Power Dissipation: 250mW; (2)Forward Current: 25mA; (3)Pulse Forward Current: 60mA; (4)Derating: 0.33mA/℃ ; (5)TA=25℃ or higher: 0.8mA/℃; (6)Reverse Voltage: 4V; (7)Operating Temperature: -40℃ to +85℃; (8)Storage Temperature: -40℃ to +85℃.

Features

MU02-5201 features: (1) light emitting surface (outer size): 14×14mm (15×15mm) (L×W); (2) single color: green; (3) Lead-free soldering compatible; (4) RoHS compliant.

Diagrams

MU02-5201 dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
MU02-5201
MU02-5201


LED SQUR 14X14 PUR GRN DIFF 8PIN

Data Sheet

0-100: $0.70
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
MU02-2201
MU02-2201


LED SQUARE 14X14 RED DIFF 8PIN

Data Sheet

0-100: $0.60
MU02-3201
MU02-3201


LED SQUARE 14X14 ORANG DIFF 8PIN

Data Sheet

0-100: $0.65
MU02-4201
MU02-4201


LED SQUARE 14X14 YELLW DIFF 8PIN

Data Sheet

0-1: $1.09
1-25: $0.71
25-100: $0.62
100-250: $0.56
250-500: $0.50
500-1000: $0.43
1000-5000: $0.39
MU02-5201
MU02-5201


LED SQUR 14X14 PUR GRN DIFF 8PIN

Data Sheet

0-100: $0.70
MU02-5202
MU02-5202


LED SQUARE 14X14 GREEN DIFF 8PIN

Data Sheet

0-100: $0.62
