Product Summary

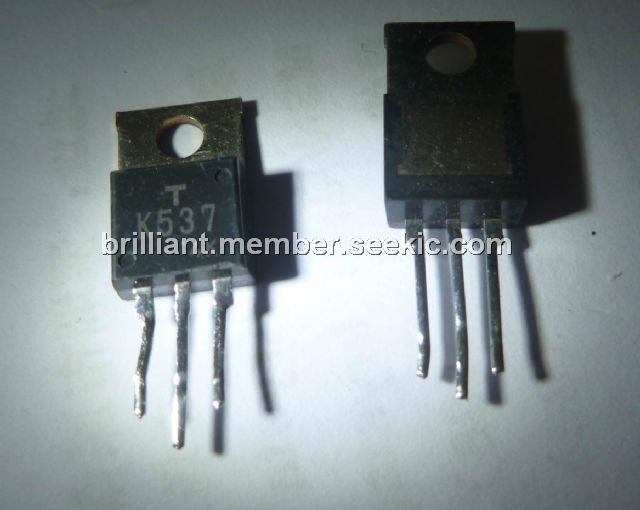

The 2SK537 is a TOSHIBA field effect transistor.
Parametrics
2SK537 absolute maximum ratings: (1)Drain to source voltage VDSX: 900V; (2)Gate to source voltage VGSS: ±20 V; (3)Drain current ID: 1A; (4)Drain peak current ID(pulse): 3A; (5)Drain Power dissipation PD: 60W; (6)Channel temperature Tch: 150℃; (7)Storage temperature Tstg: -55℃ to +150℃.
Features
2SK537 features: (1) High Breakdown Voltage: V (BR) DSS=900V; (2) High Forward Transfer Admittance: Yfs=0.4s (typ.); (3) Low Leakage current: IGSS=±100nA (Max.) @VGS=±20V, IDSS=300μA (Max.) @VDS=900V; (4) Enhancement-Mode: Vth=1.5V to 3.5V @ID=1mA.

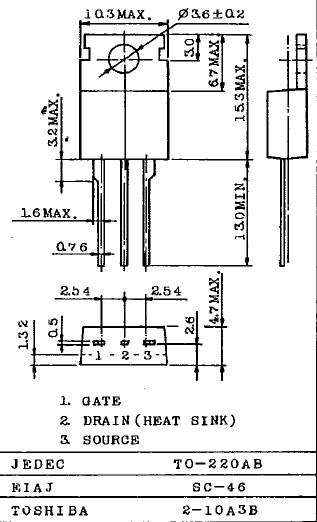

Diagrams
 |
