Product Summary

The 3590S-2-103 is a precision potentiometer designed for use in HMI applications.

Parametrics

3590S-2-103 electrical characteristics: (1)Standard Resistance Range: 200 to 100 K ohms; (2)Total Resistance Tolerance: ±5 %; (3)Independent Linearity: ±0.25 %; (4)Effective Electrical Angle: 3600 ° +10 °, -0 °; (5)Absolute Minimum Resistance: 1 ohm or 0.1 % maximum (whichever is greater); (6)Noise: 100 ohms ENR maximum; (7)Dielectric Withstanding Voltage (MIL-STD-202, Method 301); (8)Sea Level: 1,500 VAC minimum; (9)Power Rating (Voltage Limited By Power Dissipation or 450 VAC, Whichever is Less): 2 watts at +40 ℃; 0 watt at +125 ℃ ; (10)Insulation Resistance (500 VDC): 1,000megohms minimum; (11) Resolution: see recommended part numbers.

Features

3590S-2-103 features: (1) Bushing mount; (2) Optional AR pin feature; (3) Plastic or metal shaft and bushings; (4) Wirewound; (5) Solder lugs or PC pins; (6) Sealable (Full body seal).

Diagrams

3590S-2-103 dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
3590S-2-103
3590S-2-103
Bourns

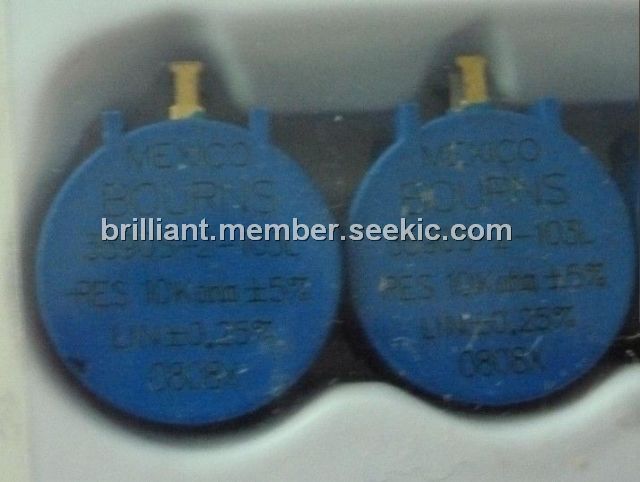

Precision Potentiometers 7/8"WW 10KOHMS 0.25% 10TURNS
Data Sheet
0-1: $43.00
1-5: $35.84
5-10: $32.25
10-25: $28.67
