Product Summary

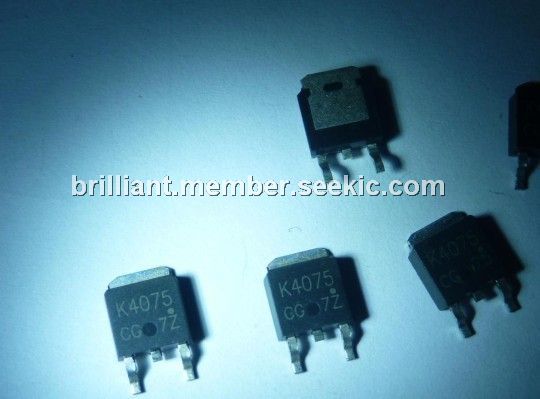

The 2SK4075 is a switching N-channel power MOSFET designed for high current switching applications.
Parametrics
2SK4075 absolute maximum ratings: (1)Drain to Source Voltage (VGS = 0V) VDSS: 40V; (2)Gate to Source Voltage (VDS = 0V) VGSS: ±20V; (3)Drain Current (DC) (TC = 25℃) ID(DC): ±50A; (4)Drain Current (pulse) Note1 ID(pulse): ±120A; (5)Total Power Dissipation (TC = 25℃) PT1: 36W; (6)Total Power Dissipation (TA = 25℃) PT2: 1.0W; (7)Channel Temperature Tch: 150℃; (8)Storage Temperature Tstg: –55℃ to +150℃; (9)Single Avalanche Current Note2 IAS: 20.8A; (10) Single Avalanche Energy Note2 EAS: 43mJ.
Features
2SK4075 features: (1) Low on-state resistance: RDS (on) 1 = 7.9mΩ MAX. (VGS = 10V, ID = 25A), RDS (on)2 = 10mΩ MAX. (VGS = 4.5V, ID = 13A); (2) Low Ciss: Ciss = 2230pF TYP.; (3) Logic level drive type.

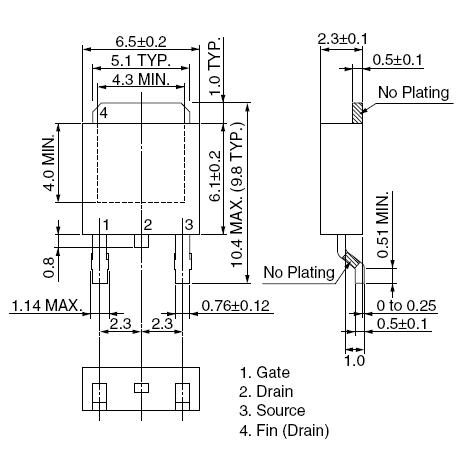

Diagrams
 |
