Product Summary

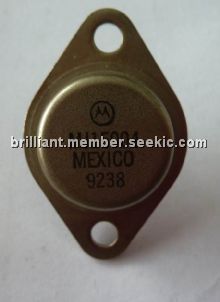

The MJ15004 is a PNP Bipolar power transistor designed for high power audio, disk head petitioners and other linear applications.
Parametrics
MJ15004 absolute maximum ratings: (1)Collector–Emitter Voltage VCEO: 140Vdc; (2)Collector–Base Voltage VCBO: 140Vdc; (3)Emitter–Base Voltage VEBO: 5Vdc; (4)Collector Current — Continuous IC: 20Adc; (5)Base Current — Continuous IB: 5Adc; (6)Emitter Current — Continuous IE: 25Adc; (7)Total Power Dissipation @ TC = 25℃: 250 Watts; (8)Total Power Dissipation Derate above 25℃: 1.43 W/℃; (9)Operating and Storage Junction Temperature Range TJ, Tstg –65 to +200℃.
Features
MJ15004 features: (1)High Safe Operating Area (100% Tested) —250 W @ 50 V; (2)For Low Distortion Complementary Designs; (3)High DC Current Gain —hFE = 25 (Min) @ IC = 5Adc.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MJ15004 |
ON Semiconductor |
Transistors Bipolar (BJT) 20A 140V 250W PNP |
Data Sheet |
Negotiable |
|
||||||||||||
|
MJ15004G |
ON Semiconductor |
Transistors Bipolar (BJT) 20A 140V 250W PNP |
Data Sheet |
|
|
||||||||||||
