Product Summary

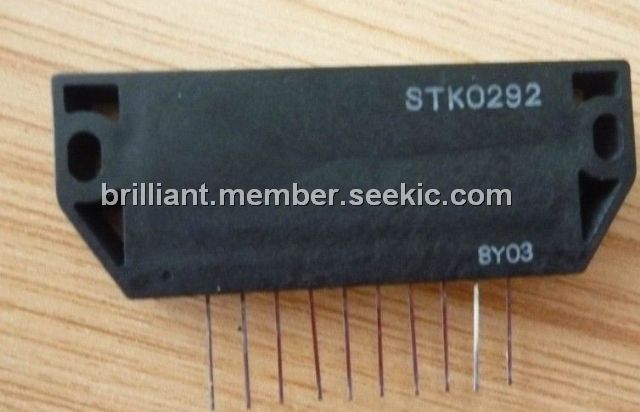

The STK0292 is an Advanced Power MOSFET.
Parametrics
STK0292 absolute maximum ratings: (1)Drain-source voltage VDSS: 900V; (2)Gate-source voltage VGSS: ±30V; (3)Drain current @ TC=25℃: 2.2A; (4)Drain current (DC) ID @ TC=100℃: 1.39A; (5)Drain current (Pulsed) IDM: 8.8A; (6)Drain power dissipation PD: 85W; (7)Avalanche current (Single) IAS: 2.2A; (8)Single pulsed avalanche energy EAS: 170mJ; (9)Avalanche current (Repetitive) IAR: 8.8A; (10)Repetitive avalanche energy EAR: 8.5mJ; (11)Junction temperature TJ: 150℃; (12)Storage temperature range Tstg: -55℃ to 150℃.
Features
STK0292 features: (1)High Voltage: BVDSS=900V(Min.); (2)Low Crss : Crss=5.0F(Typ.); (3)Low gate charge : Qg=18.2nC(Typ.); (4)Low RDS(on) :RDS(on)=7.2Ω(Max.).
