Product Summary

The 2SC3281 is a Silicon NPN Triple Diffused Type Transistor. The application of it is Power Amplifier Application.

Parametrics

2SC3281 absolute maximum ratings: (1)Collector-Base Voltage:200V; (2)Collector-Emitter Voltage:200V; (3)Emitter-Base Voltage:5V; (4)Collector Current:15A; (5)Base Current:1.5A; (6)Collector Power Dissipation:150W; (7)Junction Temperature:150℃; (8)Storage Temperature Range:-55 to 150℃.

Features

2SC3281 features: (1) Complementary to 2SA1302; (2) Recommended for 100W High Fidelity Audio Frequency Amplifier Output Stage.

Diagrams

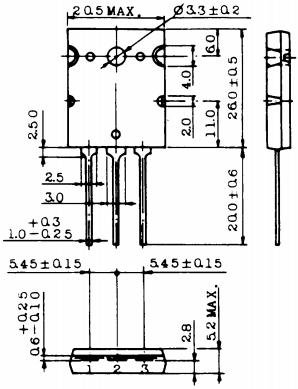

2SC3281 dimension
