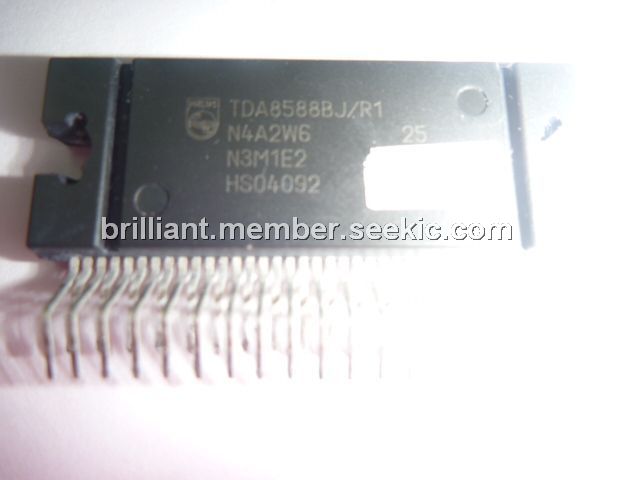

TDA8588AJ/R1CU

Product Summary

The TDA8588AJ/R1CU is an I2C-bus controlled 4×50Watt power amplifier and a multiple voltage regulator. The TDA8588AJ/R1CU has a complementary quad audio power amplifier that uses BCDMOS technology. It contains four amplifiers configured in Bridge Tied Load (BTL) to drive speakers for front and rear left and right channels. The I2C-bus allows diagnostic information of each amplifier and its speaker to be read separately. Both front and both rear channel amplifiers can be configured independently in line driver mode with a gain of 20dB. The applications of the TDA8588AJ/R1CU include Boost amplifier and voltage regulator for car radios and CD/MD players.

Parametrics

TDA8588AJ/R1CU absolute maximum ratings: (1)VP supply voltage operating: 18V, not operating: -1V to +50V, with load dump protection 0V to 50V; (2)VSDA, VSCL voltage on pins SDA and SCL operating: 0 to 7V; (3)VIN, VSVR, VACGND, VDIAG voltage on pins INn, SVR, ACGND and DIAG operating: 0 to 13V; (4)VSTB voltage on pin STB operating: 0 to 24V; (5)IOSM non-repetitive peak output current: 10A; (6)IORM repetitive peak output current: 6A; (7)Vsc AC and DC short-circuit voltage: 18V; (8)Vrp reverse polarity voltage voltage regulator only: -18V; (9)Ptot total power dissipation Tcase = 70℃: 80W; (10)Tj junction temperature: 150℃; (11)Tstg storage temperature: -55℃ to +150℃; (12)Tamb ambient temperature: -40℃ to +85℃; (13)Vesd electrostatic discharge voltage: 2000V.

Features

TDA8588AJ/R1CU features: (1)I2C-bus control; (2)Can drive a 2 W load with a battery voltage of up to 16V and a 4 W load with a battery voltage of up to 18V; (3)DC load detection, open, short and present; (4)AC load (tweeter) detection; (5)Programmable clip detect; 1% or 4%; (6)Programmable thermal protection pre-warning; (7)Independent short-circuit protection per channel; (8)Low gain line driver mode (20dB); (9)Loss-of-ground and open VP safe; (10)All outputs protected from short-circuit to ground, to VP or across the load; (11)All pins protected from short-circuit to ground; (12)Soft thermal-clipping to prevent audio holes; (13)Low battery detection.

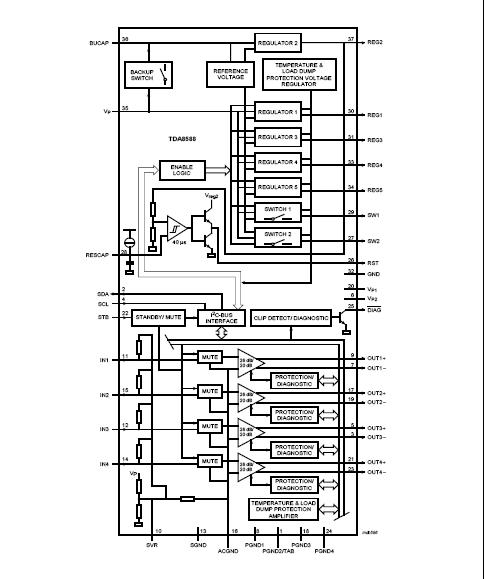

Diagrams
