Product Summary

The EB2-5NVB is a miniature signal relay. The EB2-5NVB is a version of the EA2 series, suitable for surface mounting with infrared soldering (lRS) and vapor phase soldering (VPS). The EB2-5NVB has three variations of high solder joint reliability type, and low profile type. The applications of the EB2-5NVB include Electronic switching systems, PBX, key telephone systems, automatic test equipment and other electronic equipment.

Parametrics

EB2-5NVB absolute maximum ratings: (1)Maximum switching power: 30W (resistive); (2)Maximum switching voltage: 220V; (3)Maximum switching current: 1A; (4)Maximum carrying current: 2A; (5)Minimum carrying ratings: 10mv.dc, 10mA; (6)Initial contact resistance: 50mΩ; (7)Contact material: Silver alloy with gold overlay; (8)Operate time (excluding bounce): Approximately 2 ms without diode; (9)Release time (excluding bounce): Approximately 1 ms without diode; (10)10 to 55 Hz at double amplitude of 3 mm (20 G) (misoperating); (11)10 to 55 Hz, at double amplitude of 5 mm (30 G) (destructive failure); (12)Ambient temperature: –40℃ to 85℃.

Features

EB2-5NVB features: (1)Compact and lightweight : 7.5 mm×14.3 mm×9.3 mm, 1.5 g; (2)2 form c contact arrangement; (3)Low power consumption; (4)Low magnetic interference; (5)Breakdown voltage: 1 000 VAC (surge voltage 1 500 V), FCC Part 68 conformable; (6)UL recognized (E73266), CSA certified (LR 46266); (7)Lineup in non-latch, single-coil latch and double-coil latch types; (8)Lineup in minimum footprint (9.3×14.3), and high solder joint reliability (20 years) types; (9)Lineup in low profile type (Height : 6.5 mm), and Ultra-low profile (Height : 5.6 mm).

Diagrams

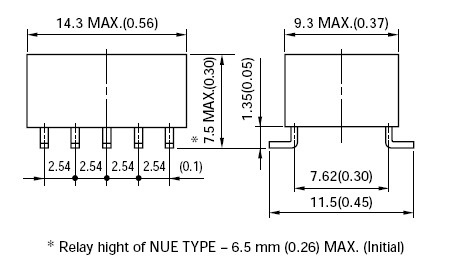

EB2-5NVB dimension
