Product Summary
The 2SJ201 is a field effect transistor.
Parametrics
2SJ201 absolute maximum ratings: (1)Drain-Source Voltage: -200V; (2)Gate-Source Voltage: ±20V; (3)Drain Current: -12A; (4)Channel Temperature: 150℃; (5)Drain Power Dissipation (TC=25℃): 150W; (6)Storage temperature range: -55℃ to 150℃.
Features
2SJ201 features: (1) High Breakdown Voltage: -200V; (2) High Forward Transfer Admittance: 5.0S; (3) Complementary to 2SK1530.

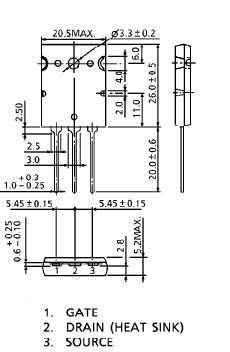

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 2SJ201 |
Other |
|
Data Sheet |
Negotiable |
|
||||
 |
2SJ201-Y(F) |
Toshiba |
MOSFET MOSFET P-Ch 200V 12A Rdson 0.625 Ohm |
Data Sheet |
Negotiable |
|
||||
