Product Summary

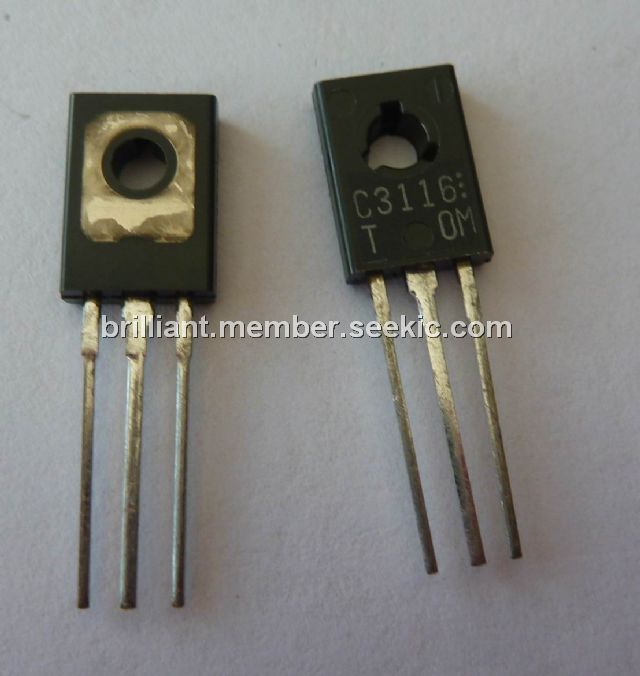

The 2SC3116 is a PNP/NPN Epitaxial Planar Silicon Transistor. The applications of the 2SC3116 include Color TV sound output, converters, inverters.
Parametrics
2SC3116 absolute maximum ratings: (1)Collector-to-Base Voltage VCBO: -180V; (2)Collector-to-Emitter Voltage VCEO: -160V; (3)Emitter-to-Base Voltage VEBO: -6V; (4)Collector Current IC: -0.7A; (5)Collector Current (Pulse) ICP: -1.5A; (6)Collector Dissipation PC: 1W; (7)Collector Dissipation PC: 10W @TC =25℃; (8) Junction Temperature Tj: 150℃; (9)Storage Temperature Tstg:-55℃ to +150℃.
Features
2SC3116 features: (1) High breakdown voltage; (2) large current capacity; (3) Using MBIT process.

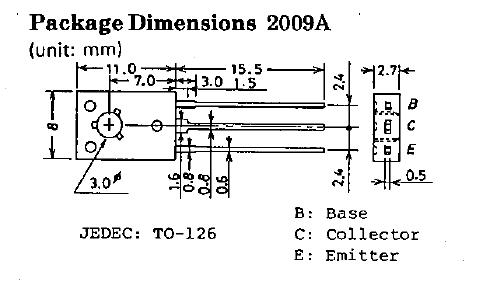

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 2SC3116 |
Other |
|
Data Sheet |
Negotiable |
|
||||
