Product Summary
The 1S2076A is a Silicon Epitaxial Planar Diode for Various Detector, Modulator, and Demodulator.
Parametrics
1S2076A absolute maximum ratings: (1)Peak reverse voltage VRM: 70V; (2)Reverse voltage VR: 60V; (3)Peak forward current IFM: 450mA; (4)Non-Repetitive peak forward surge current IFSM: 1A; (5)Average forward current IO: 150mA; (6)Power dissipation Pd: 250mW; (7)Junction temperature Tj: 175℃; (8)Storage temperature Tstg: –65℃ to +175℃.
Features
1S2076A features: (1) Low capacitance. (C = 3.0pF max); (2) Short reverse recovery time. (trr = 8.0ns max); (3)High reliability with glass seal.

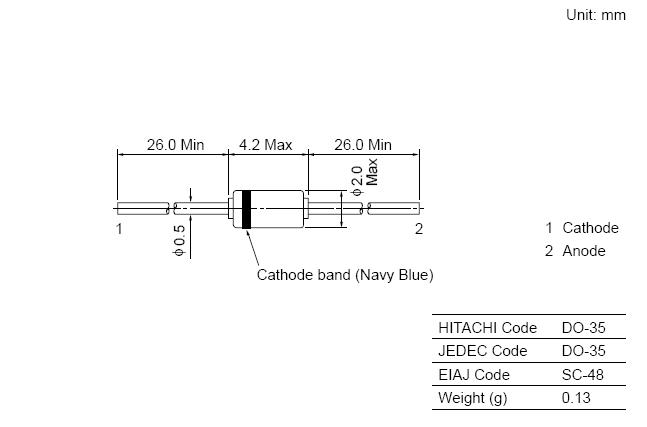

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 1S2076A |
Other |
|
Data Sheet |
Negotiable |
|
||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||
|
1S20 |
Rectron |
Schottky (Diodes & Rectifiers) Schottky Barr Rect 1A,20V |
Data Sheet |
|
|
||||||||
|
1S20 - 1S100 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||
|
1S2074(H) |
Other |
|
Data Sheet |
Negotiable |
|
||||||||
|
1S2075(K) |
Other |
|
Data Sheet |
Negotiable |
|
||||||||
|
1S2076 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||
|
1S2076A |
Other |
|
Data Sheet |
Negotiable |
|
||||||||
