Product Summary
The 2SB1647 is a Silicon PNP Epitaxial Planar Transistor. The applications of the 2SB1647 include Audio, Series Regulator and General Purpose.
Parametrics
2SB1647 absolute maximum ratings: (1)VCEO: -150V; (2) VCBO: -150V; (3)VEBO: -5V; (4)IC: -15A; (5)IB: -1A; (6)PC: 130W @ TC=25℃; (7)Tj: 150℃; (8)Tstg: -55℃ to +150℃.
Features
2SB1647 features: (1)ICBO: -100max μA; (2)IEBO: -100max μA; (3)V(BR)CEO: -150min V; (4)hFE: 5000 min; (5)VCE(sat): -2.5max V; (6)VBE(sat): -3.0max V; (7)fT: 45typ MHz; (8)COB: 320typ pF.

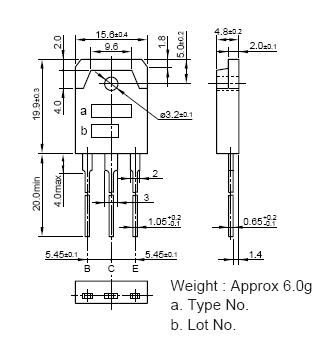

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 2SB1647 |
Other |
|
Data Sheet |
Negotiable |
|
||||
