Product Summary
The 2SA1491 is a Silicon PNP Power Transistor. The applications of the 2SA1491 include Audio and general purpose.
Parametrics
2SA1491 absolute maximum ratings: (1)Collector-to-Base Voltage VCBO: -140V; (2)Collector-to-Emitter Voltage VCEO: -140V; (3)Emitter-to-Base Voltage VEBO: -6V; (4)Collector Current IC: -10A; (5)Base Current: -4A; (6)Collector Dissipation @ TC=25℃: 10W; (7)Junction Temperature Tj: 150℃; (8)Storage Temperature Tstg:-55℃ to +150℃.
Features
2SA1491 features: (1) With TO-3PN package; (2) Complement to type 2SC3855.

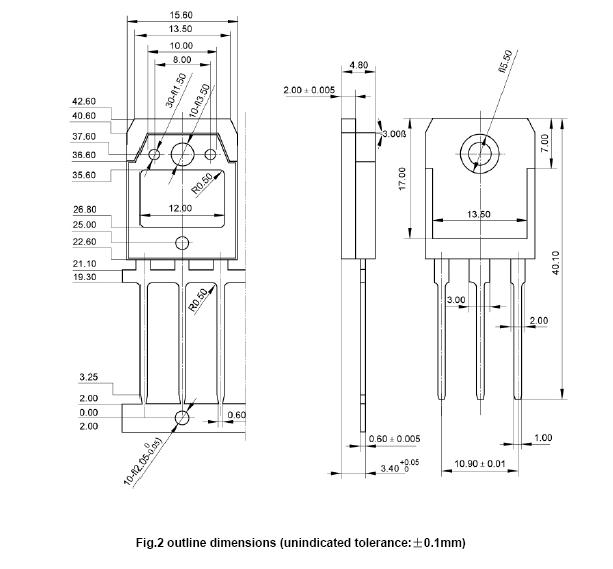

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 2SA1491 |
Other |
|
Data Sheet |
Negotiable |
|
||||
