Product Summary

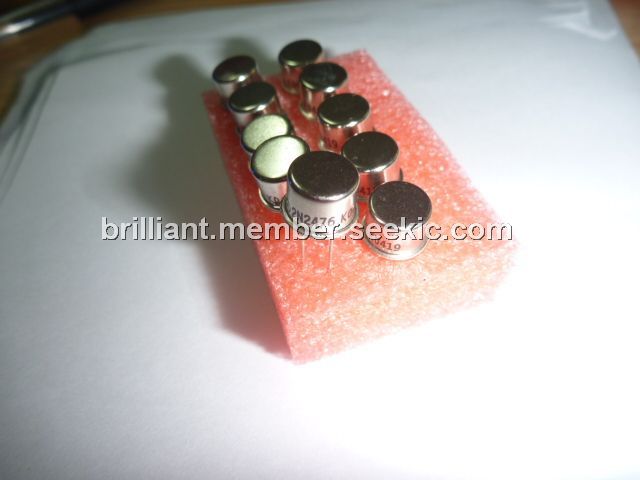

The 2N2476 is a small signal transistor.

Parametrics

2N2476 absolute maximum ratings: (1) VCBO Min.: 60V; (2) VCEO Min.: 20V; (3) VEBO Min.: 5.0V; (4) ICBO: 0.20μA; (5) VCB: 50V; (6) hFE MIN: 20; (7) IC: 150mA; (8) VCE: 10V.

Features

2N2476 features: (1) VCE (SAT): 0.4V; (2) IC: 150mA; (3) fT: 250MHz; (4) Cob: 10pF; (5) time on: 25ns; (6) time off: 45ns.

Diagrams

2N2476 Pin Configuration
