Product Summary

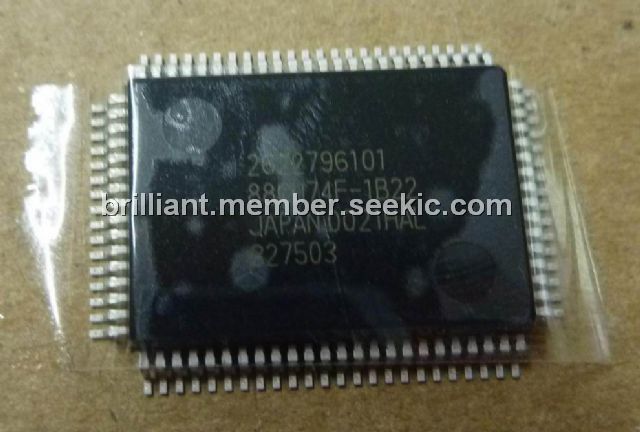

The TMP88CU74F-1B22 is a high speed and high performance 8-bit single chip microcomputer. These MCU contain 8-bits AD conversion inputs and a VFT driver on a chip.

Parametrics

TMP88CU74F-1B22 absolute maximum ratings: (1)Supply Voltage VDD: -0.3V to 6.5V; (2)Input Voltage VIN: -0.3V to VDD + 0.3V; (3)Output Voltage VOUT1 P2, P3 (at open-drain): -0.3V to VDD +0.3V; (4)Output Voltage VOUT2 P6, P7, P8, P9, PD: VDD-40 to VDD + 0.3V; (5)Output Current IOUT1 P0, P1, P2, P3, P4, P5 Ports: 3.2mA; (6)Output Current IOUT2 P6, P7, P8, P9, PD Ports: -25mA; (7)Power Dissipation (Topr = 25℃): 1200mW; (8)Soldering Temperature (time) Tsld 260℃ (10s); (9)Storage Temperature Tstg: -55℃ to + 125℃; (10)Operating Temperature Topr: -30℃ to + 70℃.

Features

TMP88CU74F-1B22 features: (1)8-bit single chip microcomputer TLCS-870/X series; (2)Instruction execution time: 0.32μs(at 12.5MHz); 122μs (at 32.768MHz); (3)842 basic instructions; (4)General-purpose register: 16 banks; (5)15 interrupt sources; (6)Input/Output ports (71Pins); (7)16-bits timer/counters: 2 channels; (8)8-bits timer/counters: 2 channels; (9)Time base timer; (10)Divider output function; (11)Wide operating voltage: 2.7 to 5.5V at 32.8MHz, 4.5 to 5.5V at 12.5MHz/32.8MHz.

Diagrams

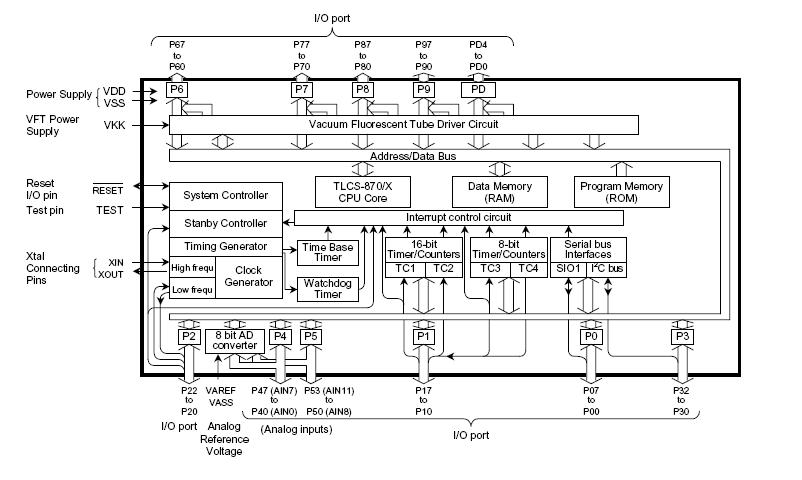

TMP88CU74F-1B22 block diagram
