Product Summary

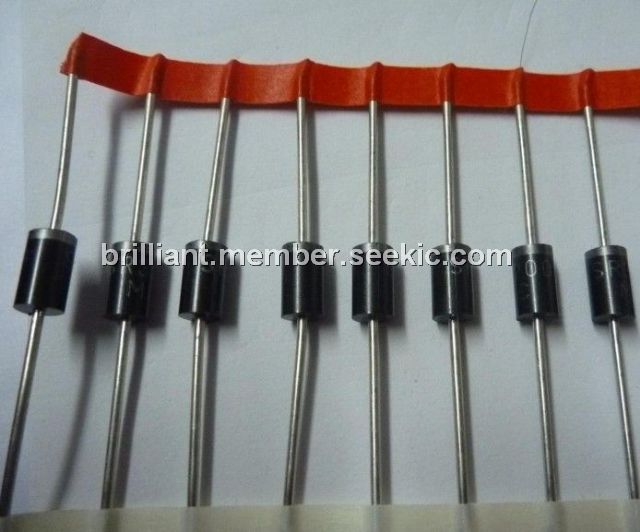

The SR3200 is a schottky barrier rectifier.

Parametrics

SR3200 absolute maximum ratings: (1)Maximum Recurrent Peak Reverse Voltage: 200V; (2)Maximum RMS Voltage: 140V; (3)Maximum DC Blocking Voltage: 200V; (4)Maximum Average Forward Rectified Current at Derating Lead Temperature: 3.0A; (5)Peak Forward Surge Current 8.3 ms single half sine-wave superimposed on rated load (JEDEC method): 80A; (6)Typical Thermal Resistance: 40℃/W; (7)Typical Junction Capacitance: 200pF; (8)Operating Temperature Range: 150℃; (9)Storage Temperature Range: -55℃ to +150℃.

Features

SR3200 features: (1) High reliability; (2) Low switching loss; (3) Low forward voltage drop; (4) High current capability; (5) High switching capability.

Diagrams

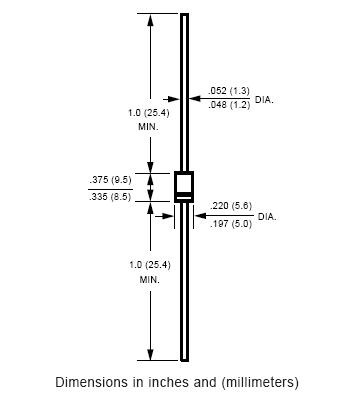

SR3200 dimension
