Product Summary

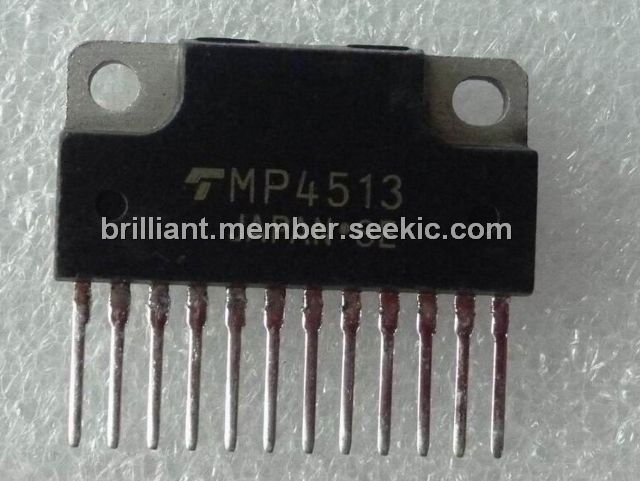

The MP4513 is a Power Transistor Module Silicon NPN Triple Diffused Type.
Parametrics
MP4513 absolute maximum ratings: (1)Collector-base voltage VCBO: 100V; (2)Collector-emitter voltage VCEO: 100V; (3)Emitter-base voltage VEBO: 5V; (4)DC IC: 5A; (5)Collector current Pulse ICP: 8A; (6)Continuous base current IB: 0.1A; (7)Collector power dissipation (1 device operation, Ta = 25℃) PC: 3.0W; (8)Collector power dissipation (4 devices operation) Ta = 25℃: 5.0W; Tc = 25℃: 25W; (9)Isolation voltage VIsol: 1000V; (10)Junction temperature Tj: 150℃; (11)Storage temperature range Tstg: -55℃ to 150℃.
Features
MP4513 features: (1)Package with heat sink isolated to lead (SIP 12 pin); (2)High collector power dissipation (4 devices operation): PT = 5W (Ta = 25℃); (3)High collector current: IC (DC) = 5A (max); (4) High DC current gain: hFE = 1000 (min) (VCE = 3V, IC = 3A); (5) Diode included for absorbing fly-back voltage.
