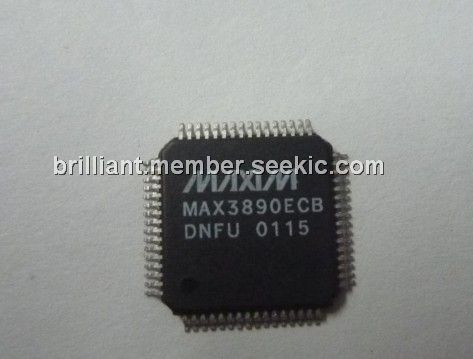

Product Summary

The MAX3890ECB is a serializer. It is ideal for converting 16-bitwide, 155Mbps parallel data to 2.5Gbps serial data in ATM and SDH/SONET applications. Operating from a single +3.3V supply, this device accepts low-voltage differential-signal (LVDS) clock and data inputs for interfacing with high-speed digital circuitry, and delivers PECL serial data and clock outputs. A fully integrated PLL synthesizes an internal 2.5GHz serial clock from a 155.52MHz, 77.76MHz, 51.84MHz, or 38.88MHz reference clock. A loop back data output is provided to facilitate system diagnostic testing. The MAX3890ECB is available in the extended temperature range (-40℃ to +85℃) in a 64-pin TQFP exposed paddle (EP) package. The applications of the MAX3890ECB include 2.5Gbps SDH/SONET Transmission Systems, 2.5Gbps ATM/SONET Access Nodes, Add/Drop Multiplexers, Digital Cross-Connects, and ATM Backplanes.

Parametrics

MAX3890ECB absolute maximum ratings: (1)Terminal Voltage (with respect to GND) VCC: -0.5V to +5V; (2)All Inputs, FIL+, FIL-: -0.5V to (VCC + 0.5V); (3)Output Current LVDS Outputs (PCLKO±): 10mA; (4)PECL Outputs (SDO±, SCLKO±): 50mA; (5)CML Outputs (SLBO±): 15mA; (6)Continuous Power Dissipation (TA = +85℃); (7)TQFP-EP (derate 44.8mW/℃ above +85℃): 1W; (8)Operating Temperature Range: -40℃ to +85℃; (9)Storage Temperature Range: -60℃ to +150℃; (10)Lead Temperature (soldering, 10sec): +300℃.

Features

MAX3890ECB features: (1)Single +3.3V Supply; (2)495mW Power Consumption; (3)Exceeds ANSI, ITU, and Bellcore Specifications; (4)155Mbps (16-bit wide) Parallel to 2.5Gbps Serial Conversion; (5)Clock Synthesis for 2.5Gbps; (6)Multiple Clock Reference Frequencies (155.52MHz, 77.76MHz, 51.84MHz, 38.88MHz); (7)LVDS Parallel Clock and Data Inputs; (8)Additional High-Speed Output for System Loop back Testing.

Diagrams

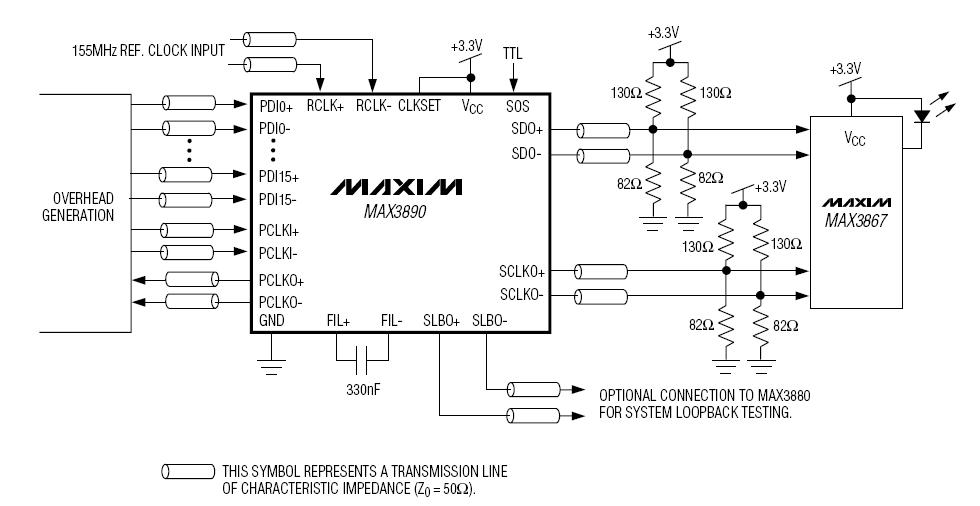

MAX3890ECB block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
MAX3890ECB
MAX3890ECB

Maxim Integrated Products

Serializers & Deserializers (Serdes) Interface IC 3.3V 2.5Gbps SDH/ SONET 16:1 Serial

Data Sheet

Negotiable
MAX3890ECB+D
MAX3890ECB+D

Maxim Integrated Products

Serializers & Deserializers (Serdes) Interface IC 3.3V 2.5Gbps SDH/ SONET 16:1 Serial

Data Sheet

0-134: $16.32
MAX3890ECB-D
MAX3890ECB-D

Maxim Integrated Products

Serializers & Deserializers (Serdes) Interface IC 3.3V 2.5Gbps SDH/ SONET 16:1 Serial

Data Sheet

Negotiable
MAX3890ECB-TD
MAX3890ECB-TD

Maxim Integrated Products

Serializers & Deserializers (Serdes) Interface IC 3.3V 2.5Gbps SDH/ SONET 16:1 Serial

Data Sheet

Negotiable
MAX3890ECB-T
MAX3890ECB-T

Maxim Integrated Products

Serializers & Deserializers (Serdes) Interface IC 3.3V 2.5Gbps SDH/ SONET 16:1 Serial

Data Sheet

Negotiable
MAX3890ECB+TD
MAX3890ECB+TD

Maxim Integrated Products

Serializers & Deserializers (Serdes) Interface IC 3.3V 2.5Gbps SDH/ SONET 16:1 Serial

Data Sheet

0-583: $17.56
583-750: $17.56
