ISD-4003-05MPY

Product Summary

The ISD-4003-05MPY is a Single-Chip Voice Record/Playback Device. The ISD-4003-05MPY provides high quality, 3-volt, single-chip Record/Playback solutions for 4- to 8-minute messaging applications which are ideal for cellular phones and other portable products. The ISD-4003-05MPY includes an on-chip oscillator, ant aliasing filter, smoothing filter, AutoMute feature, audio amplifier, and high density, multilevel Flash storage array. The ISD-4003-05MPY is designed to be used in a microprocessor or microcontroller-based system. Address and control are accomplished through a Serial Peripheral Interface (SPI) or Microwire Serial Interface to minimize pin count.

Parametrics

ISD-4003-05MPY absolute maximum ratings: (1)Junction temperature: 150℃; (2)Storage temperature range: -65℃ to +150℃; (3)Voltage applied to any pin: (VSS-0.3V) to (VCC+0.3V); (4)Voltage applied to any pin (Input current limited to ±20mA): (VSS-0.1V) to (VCC+0.1V); (5)Lead temperature (soldering 10 seconds): 300℃; (6)VCC-VSS: -0.3V to +7.0V.

Features

ISD-4003-05MPY features: (1)Single-chip voice Record/Playback solution; (2)Single +3 volt supply; (3)Low-power consumption; (4)Operating current: ICC Play = 15mA (typical), ICC Rec = 25mA (typical), Standby current: 1μA (typical); (5)Single-chip durations of 4, 5, 6, and 8 minutes; (6)High-quality, natural voice/audio reproduction; (7)AutoMute feature provides background noise attenuation during periods of silence; (8)No algorithm development required; (9)Microcontroller SPI or Microwire Serial Interface; (10)Fully addressable to handle multiple; (11)messages; (12)Nonvolatile message storage; (13)Power consumption controlled by SPI or Microwire control register; (14)100-year message retention (typical); (15)100K record cycles (typical); (16)On-chip clock source; (17)Available in die form, PDIP, SOIC, TSOP, and chip scale packaging (CSP); (18)Extended temperature (-20℃ to + 70℃) and industrial temperature (-40℃ to +85℃); (19) Versions available.

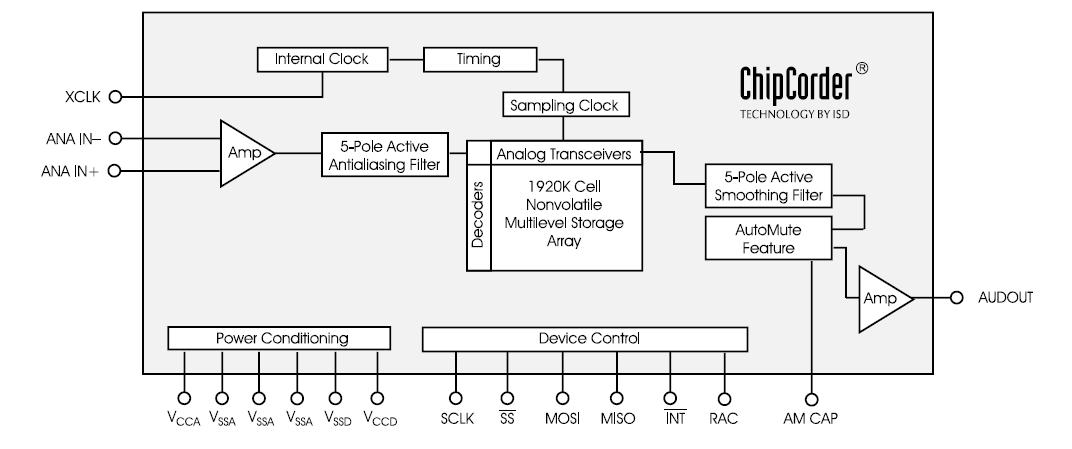

Diagrams
