Product Summary

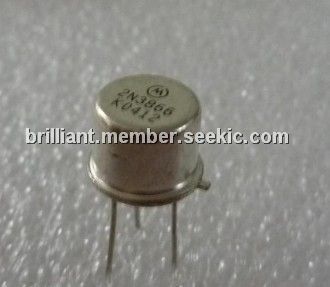

The 2N3866 is an NPN overlay transistor in TO-39 metal packages with the collector connected to the case. The 2N3866 is primarily intended for class-A, B or C amplifiers, frequency multiplier and oscillator circuits. It is intended for use in output, driver or pre-driver stages in VHF and UHF equipment.
Parametrics
2N3866 absolute maximum ratings: (1)collector-base voltage: 55 V; (2)collector-emitter voltage:55 V; (3)collector-emitter voltage:30 V; (4)emitter-base voltage:3.5 V; (5)collector current:0.4 A; (6)average collector current: 0.4 A; (7)collector current peak value:0.4 A; (8)total power dissipation:3.5 W; (9)storage temperature:-65℃ to +200℃; (10)junction temperature:200℃.
Features
2N3866 features: (1) Silicon NPN, To-39 packaged VHF/UHF Transistor; (2) Specified 400 MHz, 28Vdc Characteristics: Output Power = 1.0 Watt, Minimum Gain = 10 dB, Efficiency = 45%; (3)800 MHz Current-Gain Bandwidth Product.

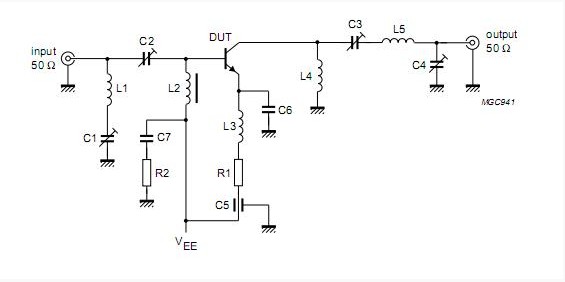

Diagrams
