Product Summary

The CA3082 is a silicon NPN transistor. The CA3082 consists of seven high current (to 100mA) silicon NPN transistors on a common monolithic substrate. The CA3082 is connected in a common collector configuration. The applications of the CA3082 include: (1) Drivers for Incandescent Display Devices; LED Displays; (2) Relay Control; (3) Thyristor Firing.

Parametrics

CA3082 absolute maxing ratings: (1) Collector-to-Emitter Voltage (VCEO): 16V; (2) Collector-to-Base Voltage (VCBO): 20V; (3) Collector-to-Substrate Voltage (VCIO): 20V; (4) Emitter-to-Base Voltage (VEBO): 5V; (5) Collector Current (IC): 100mA; (6) Base Current (IB): 20mA.

Features

CA3082 features: (1)Common Collector Array; (2)Directly Drive Seven Segment Incandescent Displays and Light Emitting Diode (LED) Display; (3)7 Transistors Permit a Wide Range of Applications in Common Collector Configuration; (4)High IC: 100mA (Max); (5)Low VCESAT (at 50mA): 0.4V (Typ).

Diagrams

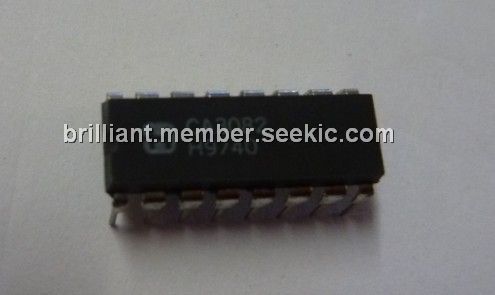

CA3082 Pin Configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
CA3082
CA3082

Intersil

GEN.P. HIGH CURR. NPN TRANS. C.C

Data Sheet
