Product Summary
The RC0402JR-070RL is a general purpose chip resistor.
Parametrics
RC0402JR-070RL absolute maximum ratings: (1)Operating Temperature Range: –55℃ to +155℃; (2)Maximum Working Voltage: 50V; (3)Maximum Overload Voltage: 100V; (4)Dielectric Withstanding Voltage: 100V; (5)Resistance Range: 1% (E24/E96) 1Ω to 10MΩ, 5% (E24) 1Ω to 22MΩ, Zero Ohm Jumper＜0.05Ω; (6)Temperature Coefficient: 10Ω＜R≤10MΩ: ±100ppm/℃; (7)1Ω≤R ≤10Ω: ±200ppm/℃; (8)10MΩ＜R≤22MΩ: ±200ppm/℃; (9)Rated Current: 1.0A; (10) Jumper Criteria Maximum Current: 2.0A.
Features
RC0402JR-070RL features: (1)Halogen Free Epoxy; (2)RoHS compliant: Products with lead free terminations meet RoHS; (3)requirements; (4)Pb-glass contained in electrodes, resistor element and glass are; (5)exempted by RoHS; (6)Reducing environmentally hazardous wastes; (7)High component and equipment reliability; (8)Saving of PCB space; (9)None forbidden-materials used in products/production.

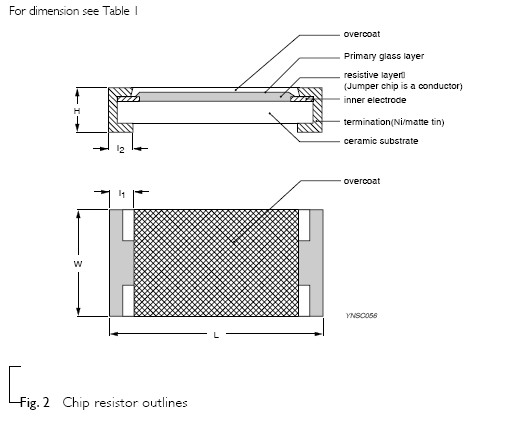

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 RC0402JR-070RL |
Yageo |
Thick Film Resistors - SMD ZERO OHM JUMPER |
Data Sheet |
|
|
||||||||||||
