Product Summary

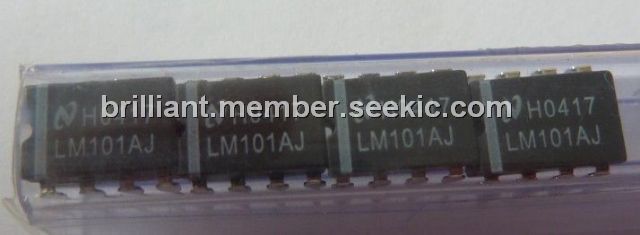

The LM101AJ is a general purpose operational amplifier which features improved performance over industry standards like the LM709. Advanced processing techniques make possible an order of magnitude reduction in input currents, and a redesign of the biasing circuitry reduces the temperature drift of input current. The LM101AJ provides better accuracy and lower noise in high impedance circuitry. The low input currents also make it particularly well suited for long interval integrators or timers, sample and hold circuits and low frequency waveform generators.
Parametrics
LM101AJ absolute maximum ratings: (1)Supply Voltage:+22V; (2)Differential Input Voltage:+30V; (3)Input Voltage:+15V; (4) Ouput Short Circuit Duration: Continuous; (5)Operating Ambient Temperature Range:-55℃ to +125℃; (6)Maximum Junction Temperature:150℃; (7)Storage Temperature Range:-65℃ to +150℃; (8)Lead Temperature:300℃ (Soldering, 10 seconds); (9)ESD Tolerance: 2000V.
Features
LM101AJ features: (1)Offset voltage 3 mV maximum over temperature ; (2)Input current 100nA maximum over temperature ; (3)Offset current 20nA maximum over temperature ; (4)Offsets guaranteed over entire common mode and supply voltage ranges ; (5)Slew rate of 10V/uS as a summing amplifier.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LM101AJ |
National Semiconductor (TI) |
Operational Amplifiers - Op Amps |
Data Sheet |
|
|
||||||||||||
 |
LM101AJLQMLV |
National Semiconductor (TI) |
Operational Amplifiers - Op Amps |
Data Sheet |
|
|
||||||||||||
