Product Summary
The DG444DY is a Quad SPST CMOS Analog Switch. It is designed to provide high speed, low error switching of analog signals. The DG444 has a normally closed function. The DG445 has a normally open function. Combining low power (22nW, typ) with high speed (tON: 120 ns, typ), the DG444DY is ideally suited for upgrading DG211/212 sockets. Charge injection has been minimized on the drain for use in sample-and-hold circuits. The applications of the DG444DY include Audio Switching, Battery Powered Systems, Data Acquisition, Sample-and-Hold Circuits, Telecommunication Systems, Automatic Test Equipment, Single Supply Circuits, and Hard Disk Drives.
Parametrics
DG444DY absolute maximum ratings: (1)V+ to V–: 44V; (2)GND to V–: 25V; (3)VL (GND –0.3V) to (V+) + 0.3V; (4)Digital Inputs VS, VD: (V–) –2V to (V+) +2V or 30mA, whichever occurs first; (5)Continuous Current (Any Terminal): 30mA; (6)Current, S or D (Pulsed 1 ms, 10% duty cycle): 100mA; (7)Storage Temperature: –65℃ to 125℃; (8)Power Dissipation (Package): 640mW.
Features
DG444DY features: (1) Low on-Resistance: 50Ω; (2) Low Leakage: 80pA; (3) Low Power Consumption: 22nW; (4) Fast Switching Action—tON: 120ns; (5) Low Charge Injection; (6) DG211/DG212 Upgrades; (7) TTL/CMOS Logic Compatible.

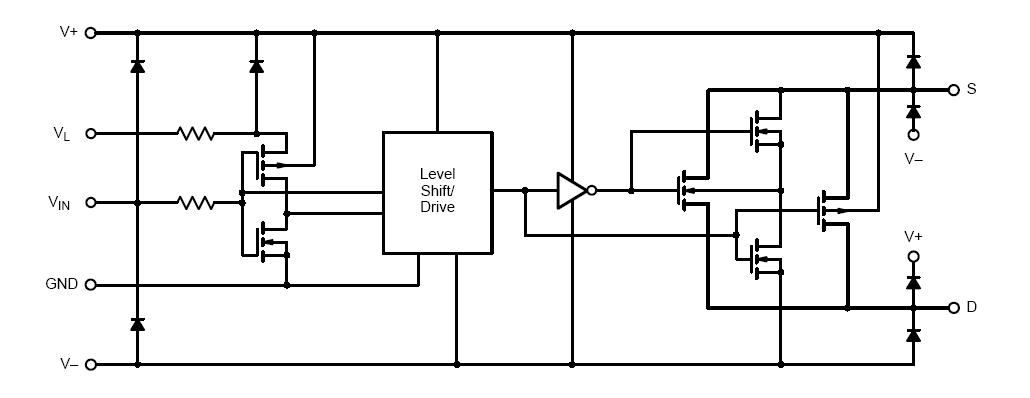

Diagrams
