Product Summary

The AGN200A12 is an ultra-small package SLIM polarized relay. The applications of the AGN200A12 include Telephone exchange, transmission equipment, Communications devices, Measurement devices, Home appliances, and audio/visual equipment, Handheld and portable products.

Parametrics

AGN200A12 absolute maximum ratings: (1) Arrangement 2 Form C; (2) Initial contact resistance, max. (By voltage drop 6V DC 1A): 100mΩ; (3) Nominal switching capacity (resistive load):1A 30V DC, 0.3A 125V AC; (4) Max. Switching power (resistive load): 30W, 37.5V A; (5) Max. Switching voltage: 110V DC, 125V AC; (6) Max. Switching current: 1A; (7) Min. switching capacity: 10μA 10mV DC; (8) Single side stable: 140mW (1.5V to 12V DC), 230mW (24V DC); (9)1 coil latching 100mW (1.5V to 12V DC), 120mW (24V DC).

Features

AGN200A12 features: (1)Compact slim body saves space; (2)Outstanding surge resistance; (3)The use of twin crossbar contacts ensures high contact reliability; (4)Increased packaging density; (5)Nominal operating power: 140mW; (6)Outstanding vibration and shock resistance.

Diagrams

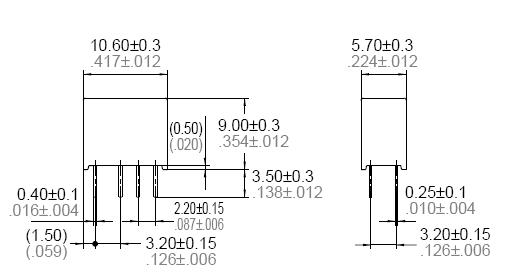

AGN200A12 dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AGN200A12
AGN200A12
Panasonic Electric Works
Low Signal Relays - PCB 1A 12VDC DPDT NON-LATCHING SMD
Data Sheet
0-1: $1.82
1-25: $1.76
25-50: $1.72
50-100: $1.66
AGN200A12X
AGN200A12X
Panasonic Electric Works
Low Signal Relays - PCB 2 Form C 1 Form A 30VDC SMD 12V
Data Sheet
0-500: $1.61
500-1000: $1.56
1000-2500: $1.51
2500-5000: $1.43
AGN200A12Z
AGN200A12Z
Panasonic Electric Works
Low Signal Relays - PCB 2 Form C 1 Form A 30VDC SMD 12V
Data Sheet
0-500: $1.61
500-1000: $1.56
1000-2500: $1.51
2500-5000: $1.43
