Product Summary

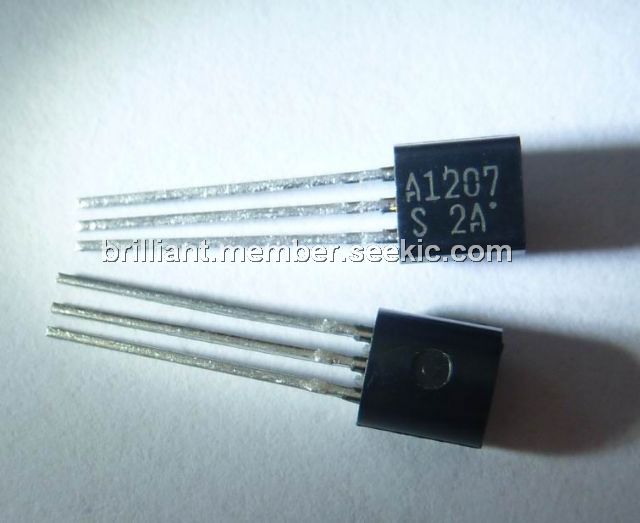

The 2SA1207 is a PNP/NPN Epitaxial Planar Silicon Transistor.
Parametrics
2SA1207 absolute maximum ratings: (1)Collector-base voltage VCBO: -180 V; (2)Collector-emitter voltage VCEO: -160 V; (3)Emitter-base voltage VEBO: -5 V; (4)Collector current IC: -70mA; (5)Collector current (pulse): -140mA; (6)Collector power dissipation PC: 600mW; (7)Junction temperature Tj: 150 ℃; (8)Storage temperature range Tstg: -55℃ to 150℃.
Features
2SA1207 features: (1) Adoption of FBET process; (2) High breakdown voltage; (3) Excellent linearity of hFE and small cob; (4) Fast switching speed.

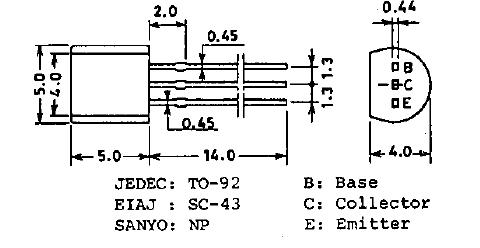

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 2SA1207 |
Other |
|
Data Sheet |
Negotiable |
|
||||
