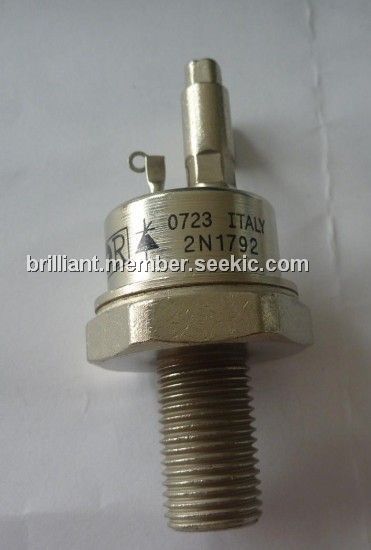

Product Summary

The 2N1792 is a Phase Control SCR. The applications of the 2N1792 include Phase Control, power supplies, motor control, and light dimmers.

Parametrics

2N1792 absolute maximum ratings: (1)RMS Forward Current: 110A; (2)Average Forward Current: 70A; (3)One-half Cycle Surge Current: 1000A; (4)Minimum Rate of Rise On-state Current (Non-Repetitive): 800A/μsec; (5)Storage temperature: -40℃ to +150℃; (6)Operating Temperature: -40℃ to +125℃; (7)Mounting Torque (Lubricated): 130 in-lb.

Features

2N1792 features: (1) Center Fired, di/namic Gate; (2) All Diffused Design; (3) Low gate Current; (4) Compression Bonded encapsulation; (5) Low VTM.

Diagrams

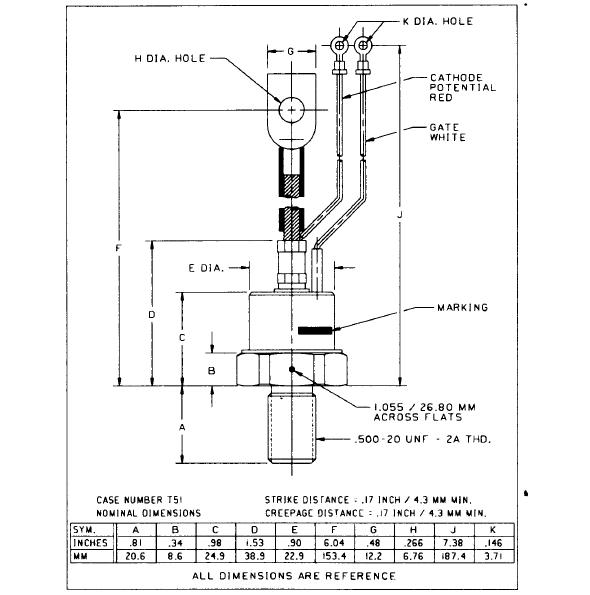

2N1792 dimension
